Introduction and Advantage of EGing PV 210R PV modules
2024-10-15 09:42:50Hits:0hits

EGing PV Product Roadmap - 2024.png

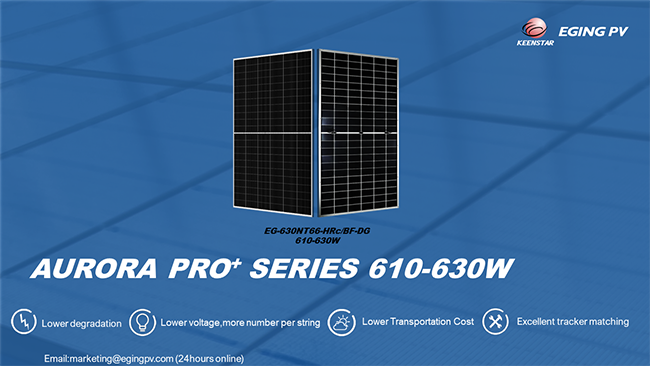

EGING PV has launched the ‘EG-630NT66-HRc/BF-DG’ PV module, designed for power and reliability in PV power station. Featuring N-type silicon and rectangular cell technology, this module surpasses traditional PERC tech with increasing power generation by 11.7%. Compared with the traditional  182*182mm PV modules in the market, 210R has the following advantages:

Firstly, lower output voltage and more number per string. Due to the low voltage and high current design adopted by EG-630NT66-HRc/BF-DG, the number of single-string PV modules is increased under the same inverter, the single-string power is improved, and BOS cost is reduced.

Secondly, optimal size to maximize the use of container space. Determination of module size requires comprehensive consideration of various factors such as production, packaging, transportation, installation, reliability, system value and so on. Therefore,we deduce the size of the 210R module by inverting the size of the  container, and come to the conclusion that the optimal size is 2382*1134mm. In terms of container loading, the utilization rate of 40`HC can be increased to 99.4%.

Last but not least, better tracker matching. 210R module is longer than 182-square cell modules in length, but the width is still the same as the 182-square version, which makes it a perfect match for the tracker. 210R module combines the advantages of low voltage and width compatibility, and makes use of the length of the PV tracker.

The module has earned IEC 61215&61730 certification proving its performance. EGING PV's commitment to environmental and economic excellence is demonstrated by reduced carbon emission and packaging optimization, optimizing BOS and LCOE for customers.
